A sprayer the job site's never seen
The PermaStroke Technology™ of Titan's Elite® series is here to ensure you never have to replace your sprayer's piston, packings, cylinder, or clutch. This sprayer is always ready to make your projects look good. Here's what makes the Elite sprayers such an innovative addition to the job site:
- PermaStroke Technology that delivers top performance between 300 and 3300 psi
- No piston, packings, cylinder, or clutch to wear or replace
- FlatLine Pulsation Dampener™ to eliminate all pressure fluctuations and deadband, provide smooth operation, and more
- Sureflo™ pusher valve for easy priming
- Large 12" pneumatic tires for increased portability and travel on rugged job sites (Elite 3500 Low Rider has 10" semi-pneumatic tires)
The PermaStroke revolution
Featuring PermaStroke Technology
- Delivers a perfect fan pattern and top performance from 300 to 3300 psi
- No piston, packings, cylinder, or clutch to wear or replace
- Easy priming with the Sureflo pusher valve
Driven by the industry's best engines
Powered by HONDA®
- Exceptionally quiet running engine
- Smooth performance with lower vibration
- Low oil alert system prevents engine seizure
Smooth, consistent results
Featuring the FlatLine Pulsation Dampener
- Eliminates all pressure fluctuation and deadband
- Provides smooth operation and a consistent finish
- Vertical no-spill filter keeps residue in the housing
PermaStroke Technology
- No worn out piston, packings cylinders or clutches to burn out or replace
- Delivers top performance at pressures from 300 to 3300 psi and when using small or large tip sizes
- Eliminates deadband – delivering a consistent fan pattern optimizing finish quality
- WearGuard® Elite Lifetime Warranty on the fluid pump
Field Serviceable

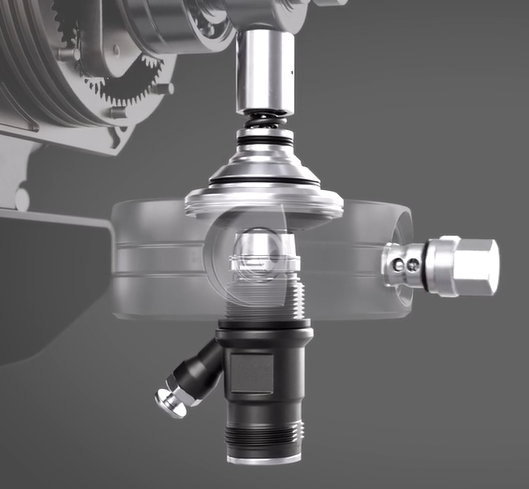

- Simple and quick repairs with cartridge-style inlet and out valves that can be changed out in only 5 minutes
- The Sureflo Pusher Valve makes priming easy by unsticking the lower ball valve with just a push of a button
Smart Design
- Spray up to 2 guns (with Elite 4500)
- Hold up to 2 spray tips with the added holder on the frame
- Large pneumatic tires for easy travel over rough surfaces
- Lift handles for easy loading and unloading
Specifications
| Elite 3500 | Elite 4500 | |
|---|---|---|
| Max Delivery | 0.75 GPM | 2.8 LPM | 1.25 GPM | 4.7 LPM |
| Max Tip Size - 1 Gun - Gas | 0.027" | 0.036" |
| Max Tip Size - 2 Gun - Gas | 0.023" | |
| Max Operating Pressure | 3300 psi | 22.8 MPa | 3300 psi | 22.8 MPa |
| Engine | Honda GX120 | Honda GX160 |
| Part Number - High Rider | 537012 | 2407310 |
| Part Number - Low Rider | 537013 | 2407311 |
